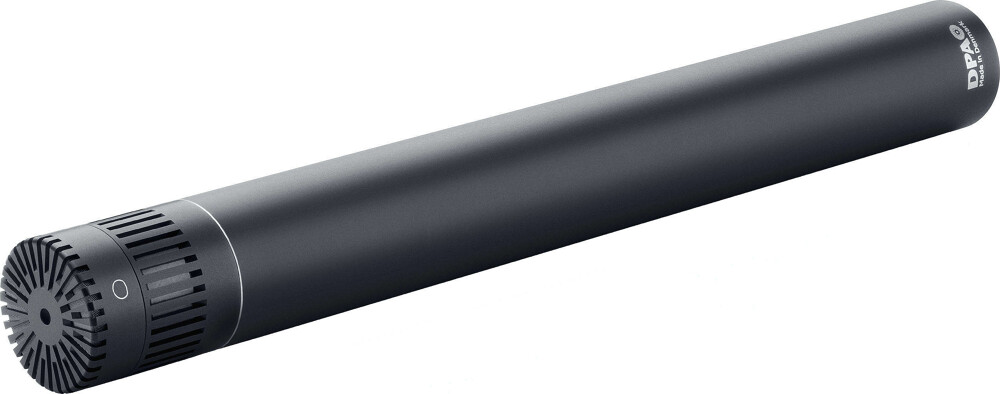

DPA - 4015A - Wide Cardioid Microphone

FROM £25.00 EX VAT
(Please note all prices are exclusive of VAT + 20% will be added to the final price)


Request a Quote

Features

  • Directional pattern: Wide cardioid
  • Principle of operation: Pressure gradient
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range: , ±2 dB, at 60 cm (23.6 in) 40 Hz - 20 kHz
  • Sensitivity, nominal: , ±2 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise leve: A-weighted Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent noise level: ITU-R BS.468-4 Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 76 dB(A)
  • Total harmonic distortion: (THD) < 1% up to 139 dB SPL peak
  • Dynamic range Typ: . 121 dB
  • Max. SPL, peak before clipping: 159 dB
  • Switchable attenuator, filters etc: 0 dB / -20 dB
  • Output impedance: 200 ?
  • Minimum load impedance: 2 k?
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle Impedance balancing with Active Drive
  • Common mode rejection ratio (CMRR) > 60 dB
  • Power supply (for full performance) 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Microphone diameter: 19 mm (0.75 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: 170 mm (6.7 in)
  • Maximum output voltage: RMS > 5 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH) Up to 90%
  • Matching tolerance: : (frequency response and sensitivity) ±1 dB
  • Phase deviation for kit: < 10°

Description

This mic is the perfect fill-in between an omnidirectional and a directional microphone.

The off-axis characteristics of this mic are totally linear, a unique quality when it comes to authentic sound reproduction. Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated.

d:dicate™ 4015A Wide Cardioid Mic
This mic suits acoustic instruments and voices with rich and open sound. It is capable of handling extremely high sound pressure levels before clipping occurs. The d:dicate™ 4015A Wide Cardioid Mic even includes a 20 dB pad switch in the center of the XLR connector to prevent overloading of the mic amplifier.
