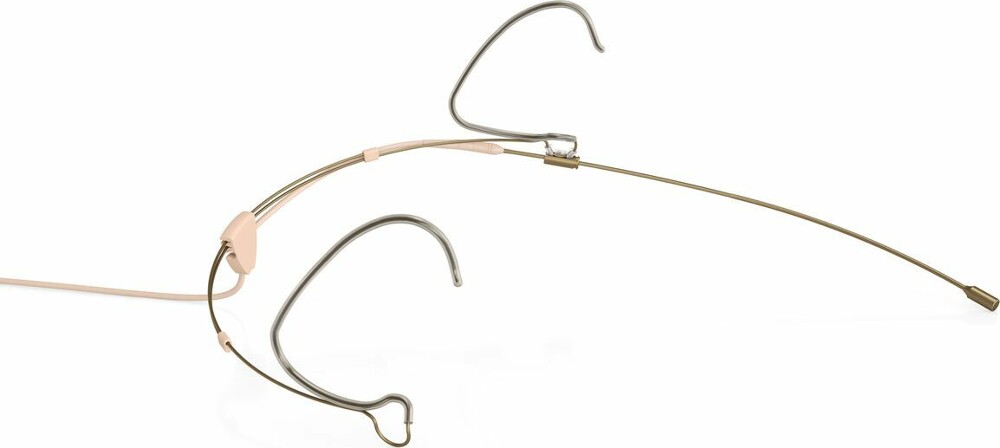

DPA 6066 CORE Omni Headset Mic, Beige, MicroDot

FROM £25.00 EX VAT
(Please note all prices are exclusive of VAT + 20% will be added to the final price)


Request a Quote

Features

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-Polarised condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ± 2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ± 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
  • Total Harmonic Distortion (THD): < 1% up to 128 dB SPL peak
  • Dynamic range: Typ. 102 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
  • Connector:
  • Color: Beige
  • Microphone head size (diameter / length): 3.4 / 8.9 mm (0.13 / 0.35 in)
  • Capsule diameter: 3 mm (0.12 in)
  • Cable length: 1.3 m (4.3 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)

Description

3 mm of audio perfection . ** Weight includes protective. case **

Submini Headset LP 3 mm of audio perfection Max security, max comfort, max sound The capsule of the d:fine™ CORE 6066 Subminiature Headset is just three millimeters in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics. Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism and sliding lock makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer’s back, where it can’t be seen.

Amazingly tiny 3 mm capsules
CORE by DPA technology
One-size-fits-all, headset fits securely and comfortably
2-way adjustable, non-reflective boom with locking system
Stainless steel, PVD coated mic cap with click function
Unique, comfortable 3-point gripping system above, below and behind the ear
New 90° cable management constructed to guide the cable and minimize cable breaks
