Allen & Heath - dLive-DM48

FROM £150.00 EX VAT
(Please note all prices are exclusive of VAT + 20% will be added to the final price)


Request a Quote

Features

  • 48 mic/line inputs, 24 line outputs
  • XCVI 160×64 FPGA core
  • 96kHz sample rate
  • Variable bit-depth for ultimate precision and noise performance
  • Virtually infinite mix headroom thanks to 96bit accumulator
  • Class leading, ultra-low latency < 0.7ms
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
  • LR, LCR and up to 5.1 mains mode
  • Multiple PFLs
  • 16 RackExtra FX with dedicated stereo returns
  • 16 DCAs
  • Built-in signal generator and RTA
  • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
  • New preamp design for extra transparency
  • Unique Active PAD circuit for consistent performance with any source
  • Connection hub
  • Dual redundant GigaACE gigabit link to Surface
  • 2x redundant DX links for I/O expansion
  • 3x I/O Ports – 128 ch 96 kHz each
  • Dedicated ME-1 48kHz port
  • 2x Network ports
  • Wordclock BNC I/O
  • Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
  • Dual redundant, hot swappable power supply
  • Flush front panel with ultra quiet fan
  • Reversible rack ears design
  • Weight: 60 kg

Description

dLive S Class DM48 MixRack 128 x 64 I/O, 48/24 sockets, 1x PSU, GigaACE, ME-1port, 3x I/O Ports

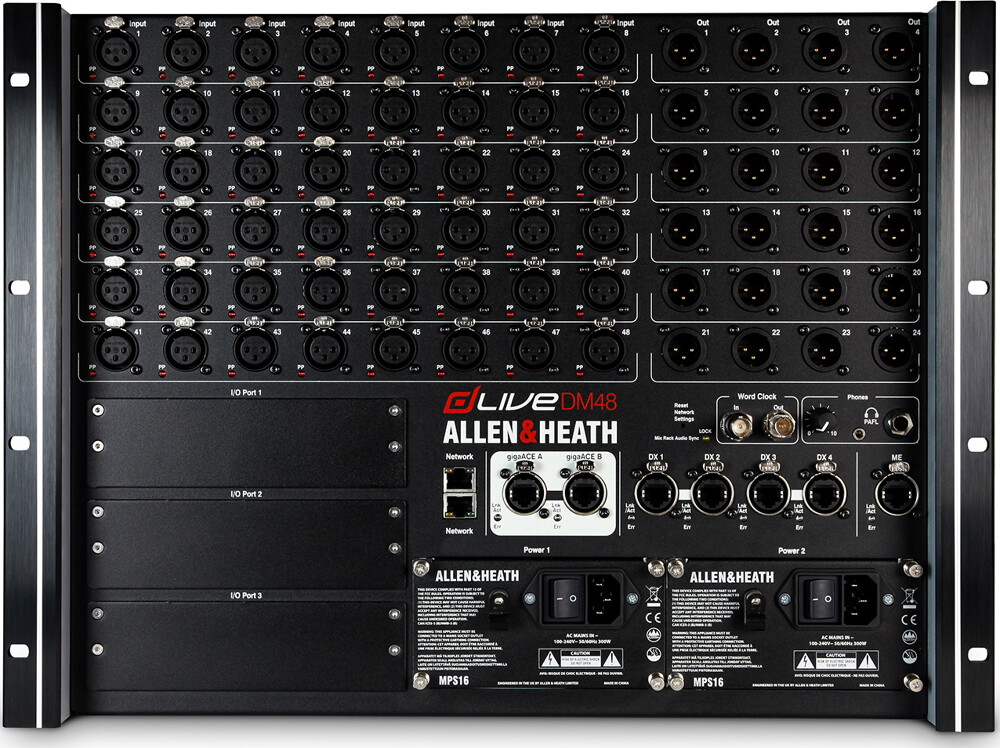

The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

There are 3 sizes of dLive MixRack available. All feature the same mix engine and differ only in the number of analogue I/O. All models can work with the full 128 channels by adding DX expanders or patching digital sources.
